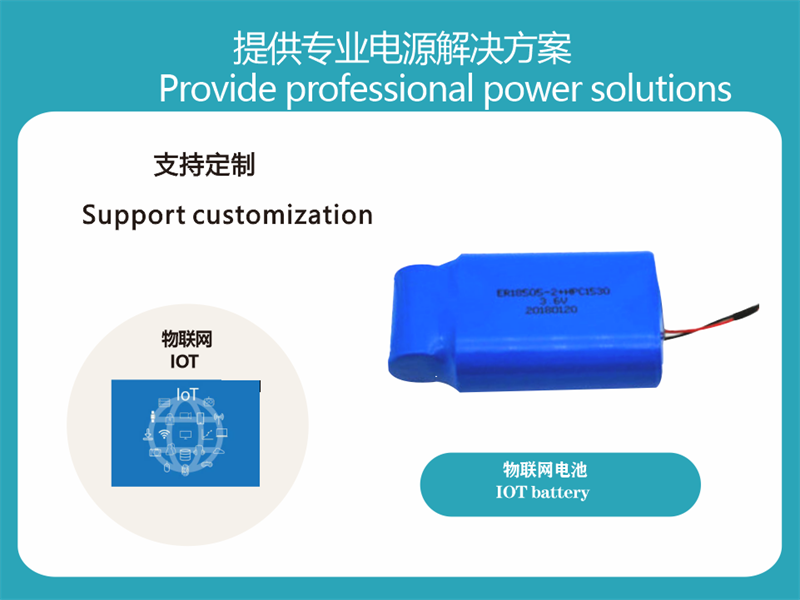

IOT battery performance indicators
1.1 Nominal voltage: 3.6V
1.2 Nominal capacity: (23℃±2℃, 500mA, 1% duty cycle to 2.5V termination) 8.2Ah
1.3 Load voltage: (5Ω, 23℃±2℃, time≤2s) ≥3.35V
1.4 Maximum pulse width: (23℃±2℃, 500mA to 2.5V termination) 1000sec
1.5 Maximum pulse working current: (23℃±2℃) 3A
1.6 Operating temperature range: -40℃～+85℃
1.7 Lag time: (23℃±2℃, 500mA to 3.0V termination) None
1.8 Annual average capacity reduction rate: ≤2%
IOT battery performance test
2.1 Testing conditions
Unless otherwise specified, all tests should be carried out at 23°C ± 2°C. All tests must be completed within 45 days of receiving the battery.
